PLANET 8-PORT 100/1000MBPS SFP +2-PORT 1G TP MANAGED ETHERN

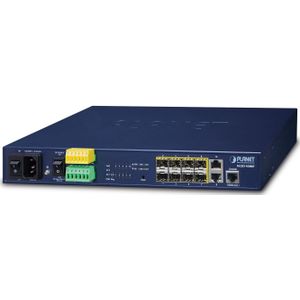

MODEL: PLANET MGSD-10080F 8-Port 100/1000X SFP + 2-Port 10/100/1000T Managed Metro Ethernet Switch Optimized Design for Metropolitan Area Network By means of improving the technology of Optical Fiber Ethernet with high-flexible, high-extendable and easy-installation features, the MGSD-10080F offers the data exchange speed of Optical Fiber up to 1Gbps, and the distance of Gigabit Optical Fiber up to 120km. It supports service providers, such as ISP and Telecom, to install Metropolitan Area Network (MAN) based on Fiber technology to the WAN Internet Service. Excellent Solution of Core / Department Switch With 10 Gigabit ports, the MGSD-10080F is able to connect up to 10 edge switches in the Ethernet environment. Moreover, the MGSD-10080F provides 20 Gigabit per second switch fabric and high bandwidth for backbone connection. The MGSD-10080F is an excellent choice of core layer switch for a Gigabit network. FEATURES PHYSICAL PORT * 8 100/1000Base-X SFP mini-GBIC slots * 2-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 * One RJ-45 console interface for basic management and setup REDUNDANT POWER SYSTEM * Redundant Power System: 100V ~ 240V AC / Dual 36V ~ 72V DC * Active-active redundant power failure protection * Backup of catastrophic power failure on one supply * Fault tolerance and resilience DIGITAL INPUT / DIGITAL OUTPUT * 2 Digital Input (DI) * 2 Digital Output (DO) * Integrates sensors into auto alarm system * Transfer alarm to IP network via SNMP trap HARDWARE DESIGN * -10 to 60 degrees C operating temperature for DC power input only * 13-inch desktop size, 19-inch Rack-mountable * Relay alarm for port breakdown, power failure * Fanless design LAYER 2 FEATURES * Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) * High performance of Store-and-Forward architecture and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth * Storm Control support * - Broadcast / Multicast / Unicast * Supports VLAN * - IEEE 802.1Q Tagged VLAN * - Up to 255 VLANs groups, out of 4094 VLAN IDs * - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) * - Private VLAN Edge (PVE) * - Protocol-based VLAN * - MAC-based VLAN * - Voice VLAN * Supports Spanning Tree Protocol * - STP, IEEE 802.1D Spanning Tree Protocol * - RSTP, IEEE 802.1w Rapid Spanning Tree Protocol * - MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN * - BPDU Guard * Supports Link Aggregation * - 802.3ad Link Aggregation Control Protocol (LACP) * - Cisco ether-channel (Static Trunk) * - Maximum 5 trunk groups, up to 8 ports per trunk group * - Up to 16Gbps bandwidth (Duplex Mode) * Provides port mirror (1-to-1) * Port mirroring to monitor the incoming or outgoing traffic on a particular port * Loop protection to avoid broadcast loops QUALITY OF SERVICE * Ingress Shaper and Egress Rate Limit per port bandwidth control * 8 priority queues on all switch ports * Traffic classification * - IEEE 802.1p CoS * - IP TOS / DSCP / IP Precedence * - IP TCP/UDP port number * - Typical network application * Strict priority and Weighted Round Robin (WRR) CoS policies * Supports QoS and In/Out bandwidth control on each port * Traffic-policing policies on the switch port * DSCP remarking MULTICAST * Supports IGMP Snooping v1, v2 and v3 * Supports MLD Snooping v1 and v2 * Querier mode support * IGMP Snooping port filtering * MLD Snooping port filtering * MVR (Multicast VLAN Registration) SECURITY * IEEE 802.1x Port-based / MAC-based network access authentication * Built-in RADIUS client to co-operate with the RADIUS servers * RADIUS / TACACS+ users access authentication * IP-based Access Control List (ACL) * MAC-based Access Control List * Source MAC / IP address binding * DHCP Snooping to filter untrusted DHCP messages * Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding * IP Source Guard prevents IP spoofing attacks * IP address access management to prevent unauthorized intruder MANAGEMENT * Switch Management Interfaces * - Console / Telnet Command Line Interface * - Web switch management * - SNMP v1 and v2c switch management * - SSH / SSL and SNMP v3 secure access * Four RMON groups (history, statistics, alarms, and events) * IPv6 IP Address / NTP / DNS management * Built-in Trivial File Transfer Protocol (TFTP) client * BOOTP and DHCP for IP address assignment * Firmware upload / download via HTTP / TFTP * DHCP Relay * DHCP Option 82 * User Privilege levels control * NTP (Network Time Protocol) * Link Layer Discovery Protocol (LLDP) Protocol * SFP-DDM (Digital Diagnostic Monitor) * Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues * Reset button for system reboot or reset to factory default * PLANET Smart Discovery Utility for deploy management Specification SFP/mini-GBIC Slots 8 1000Base-SX/LX/BX SFP interfaces, from port 1 to port 8 Compatible with 100Base-FX SFP Copper Ports 2 10/ 100/1000Base-T RJ-45 auto-MDI/MDI-X ports Console Port 1 x RJ-45-to-RS-232 serial port (115200, 8, N, 1) Switch Architecture Store-and-Forward Throughput (packet per second) 14.8Mpps @ 64Bytes packet Switch Fabric 20Gbps / non-blocking Address Table 8K entries, automatic source address learning and ageing Share Data Buffer 4Mbits Flow Control IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex Jumbo Frame 9Kbytes Reset Button < 5 seconds: System Reboot > 10 seconds: Factory Default Dimensions (W x D x H) 330 x 155 x 43.5 mm, 1U high Weight 1661g LED Indicator System: ??PWR (Green) ??DC 1 (Green) ??DC 2 (Green) ??Fault Alarm (Green) ??Ring* (Green) ??Ring Owner* (Green) Per Gigabit Ports: ??100 LNK/ACT (Orange) ??1000 LNK/ACT (Green) Power Consumption Max. 11.2 Watts / 38.2 BTU (AC input) Max. 10.8 Watts / 36.9 BTU (DC input) Power Requirements AC 100~240V, 50/60Hz 0.15A -36V DC @ 0.3A, Range: -36V ~ -72V DC Alarm One relay output for power failure. Alarm Relay current carry ability: 1A @ DC 24V DI/DO 2 Digital Input (DI) ?Level 0: -24V~2.1V (±0.1V) ?Level 1: 2.1V~24V (±0.1V) ?Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24VDC, 100mA max. Layer 2 Function Port Configuration Port disable / enable Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable Bandwidth control on each port Power saving mode control Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status Port Mirroring TX / RX / Both 1 to 1 monitor VLAN 802.1Q Tagged based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs Link Aggregation IEEE 802.3ad LACP / Static Trunk Supports 5 groups of 8-Port trunk support QoS Traffic classification based, Strict priority and WRR 8-Level priority for switching ?- Port Number ?- 802.1p priority ?- 802.1Q VLAN tag ?- DSCP/TOS field in IP Packet IGMP Snooping IGMP (v1/v2/V3) Snooping, up to 255 multicast Groups IGMP Querier mode support MLD Snooping MLD (v1/v2) Snooping, up to 255 multicast Groups MLD Querier mode support Access Control List IP-based ACL / MAC-based ACL Up to 123 entries Bandwidth Control Per port bandwidth control ?Ingress: 500Kb~1000Mbps ?Egress: 500Kb~1000Mbps Management Basic Management Interfaces Console, Telnet, Web Browser, SNMP v1, v2c and v3 Secure Management Interface SSH, SSL, SNMP v3 SNMP MIBs RFC-1213 MIB-II IF-MIB RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2819 RMON MIB (Group 1) RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2933 IGMP-STD-MIB RFC-3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB Standards Conformance Regulation Compliance FCC Part 15 Class A, CE Standards Compliance IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x Flow Control and Back pressure IEEE 802.3ad Port trunk with LACP IEEE 802.1D Spanning tree protocol IEEE 802.1w Rapid Spanning tree protocol IEEE 802.1s Multiple Spanning tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 Environment Operating Temperature: -10 ~ 60 degrees C for DC power input Relative Humidity: 5 ~ 95 % (non-condensing) Storage Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95 % (non-condensing)
